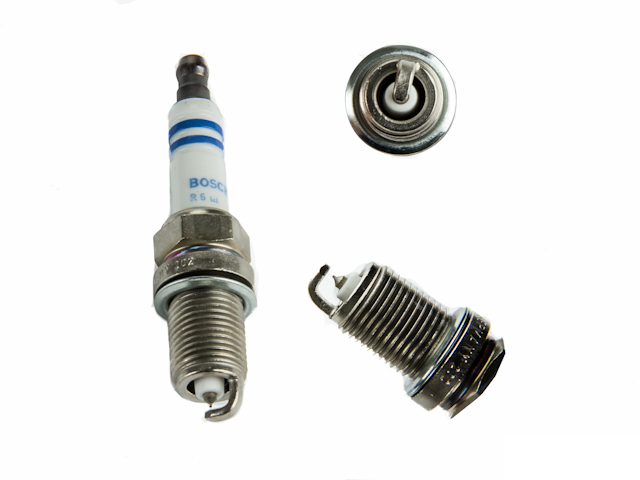

Bosch Platinum Spark Plug | 6734

Name: Bosch Platinum 6734 Spark Plug | 0242230576
Brand: Bosch Platinum
SKU: 6734
Price: 2.69 USD
Availability: OutOfStock

Chrysler, Dodge, Jeep, Ram

Not Available

Not available to order or discontinued.

You may also want a tube of dielectric tune-up grease!

This 80ml tube of dielectric grease provides a moisture-proof barrier that lubricates and protects electrical connections and wiring from salt, dirt and corrosion.

37535

Loctite Dielectric Grease; Dielectric Tune-Up Grease; 80ml Tube

$13.99

Reg
$14.57

List
$15.99

P/N: 6734 Bosch Platinum

Cross References:

0242230576

Spark plugs provide the spark needed to ignite the air/fuel mixture in each cylinder for engine combustion. High voltage from the ignition coil is transferred through the spark plug to an air gap between the spark plug tip and the spark plug ground to the engine. Once the voltage reaches the air gap, the voltage jumps the gap in the form of a spark, igniting a compressed air fuel charge inside the cylinder. The air fuel charge explodes, creating the force needed to push the cylinder down and turning the engine crankshaft to propel the engine. In short, spark plugs serve a vital function in keeping your vehicle running properly.

Components of a Spark Plug

A metal terminal that connects to the ignition system
A center electrode for current to flow through the spark plug with a tip for the current to jump making the spark
A ribbed ceramic insulator to keep current flowing through the spark plug center electrode and not into other parts of the engine
A threaded metal case to anchor the spark plug into the cylinder head with a ground electrode for the spark to jump to
A seal to seal the spark plug case to the cylinder head to prevent cylinder compression from escaping

Types of Spark Plugs

The biggest differences in spark plug construction are the materials used for the electrodes, their conductivity, and their wearability.

Copper is the base material for the center electrode on most spark plugs as it provides superb conductivity. These tend to wear quickly from the electrical transfer created by the spark and fully copper spark plugs need to be replaced every 15,000 miles.
Copper core spark plugs with yttrium or nickel tipped electrodes and grounds take longer to wear and can last up to 30,000 miles.
Platinum tipped copper core electrodes wear even less, provide superior conductivity, and can last up to 60,000 miles.
Iridium tipped copper core spark plugs wear the least and can last over 100,000 miles.

When a spark plug fails prematurely it will provide a weak spark or no spark at all. Causes of premature spark plug failure can include oil leaking from the valve cover into the spark plug chamber, your engine running too lean and overheating the spark plug, and your engine running too rich and fuel fouling the plug.

Most engines are designed to run on only one type of spark plug based on its use. Be sure to check your owner’s manual for the right type of spark plug needed for your vehicle.

View more Bosch Spark Plugs.

Bosch is the world's largest supplier of components to the automotive industry. The Bosch product line includes alternators & starters, brakes, electronic controls and sensors, fuel system parts and management, ignition system components, and steering system components. All Bosch automotive parts are either OEM (Original Equipment Manufacturer) or made to their specs as a replacement part for the OEM unit.

Left = Driver side and Right = Passenger side.

All parts are priced individually unless identified as a set or kit. "Per car" notes identify how many of a given part your car has and "Left/Right or Front/Rear" notes means the part fits the left or right side of the car. These parts are still sold individually and you'll need to select the appropriate quantity if you plan to replace more than one of this item.

What This Bosch Platinum Spark Plug Fits?

Application information below is for reference only and should not be used to determine the exact vehicle fitment. Please use the "Make Sure It Fits" vehicle selection box above to determine the exact fitment and review any application notes. If you need any help determining if this part works with your vehicle, please don't hesitate to contact us.

Chrysler

09-11 - 300 AWD C, S
